デジタル渦流・ボンドテスター探傷装置
MIZ-21SR Multimode Tester





MIZ-21SR

世界で最初の渦流探傷器とボンドテスターが一体化されたマルチモードテスターです。
最新のハンドヘルド渦流探傷装置MIZ−21Bと、最新のボンドテスターMIZ−21Rの機能がフルにドッキングされて1台に納められています。
渦流探傷装置としては、マルチ2周波として使用可能で、同時にデジタル導電率計の機能、デジタルコーティング機能も搭載したスーパーマルチ探傷器です。特に、航空機関連では最高のスペックとなります。
詳細仕様は各モデルのページをご参照下さい。
MIZ-21SR Multimode Tester A combination eddy current and bond tester in a single, rugged, battery operated, handheld case. With this introduction, one unique and compact instrument. offers access to multiple NDE test methods while operating for more than 12 hours on one battery charge. This new unit uses enhanced eddy current technology to detect surface and subsurface fatigue cracking, corrosion, heat damage or to determine material type. In the bond tester sondicator mode, it has the ability to detect impact damage, disbonds, delaminations and other anomalies in honeycomb, composites and other materials. In addition, the MIZ-21SR includes a built-in conductivity eddy current mode, as well as a multimode ultrasonic resonance function using the bond test utility. Inspections are fast and easy with a high-speed CPU and long-life NiMH battery. The large, high contrast, 240X320 pixel LCD offers the best resolution and sharpness of any handheld NDE instrument. Front-panel controls are sealed to protect from dust and moisture. Controls are easy to operate with a layout that accommodates right-handed or left-handed use. The simple menu layout is designed in a single layer insuring all functionand test parameters are always accessible. The instrument also features a serial interface to a PC. MIZ-21SR
You can carry one handheld instrument and access multiple test methods. Eddy current, two types of bond testing, plus conductivity and coating thickness measurement are all combined in one compact handheld tester. Enhanced technology provides superior flaw detection.
This handheld tester is packaged in a tough, cast aluminum case for superior durability. For fast learning and ease of use, the user interface features are common for both eddy current and bond testing. The sharp, high-contrast display offers excellent resolution and readability in all lighting conditions.
Multiple techniques, one tester.One compact, handheld tester now combines more of the technologies you need to test aircraft.The MIZ-21SR combines eddy current with two types of bond testing methods ・resonance and sondicator. It also includes a built-in mode to measure conductivity and coating thickness across a broad frequency range - from 60 kHz up to 480 kHz.
Enhanced technology for better flaw detection and faster inspections.
The MIZ-21SR employs the latest technology for superior flaw detection. High-gain input stages combined with noise-suppressing synchronous demodulation circuitry results in the best signal-to-noise ratio in the industry.The combination of a 16-bit A/D converter with high-gain analog circuitry maximizes sensitivity and signal resolution.
Built-in tilt bail offers desktop operation and securely locks into place for vertical viewing.

Molded rubber bumpers provide shock absorption and keep the case from slipping or marring work surfaces.
The MIZ-21SR’s wide frequency range (50 Hz to 8 MHz) supports a wide variety of inspection applications. Programmable analog drive and gain stages are adjustable to accommodate all probe configurations and test conditions.Three filter types (high-pass, low-pass, and band-pass) use industry-standard conventions for suppressing unwanted signals such as lift-off or motion.
Multiple display modes make for easy signal analysis. Select XY Impedance Plane, Bar Graph, C-scan, or three types of Sweep display ・whichever is most meaningful for your test.

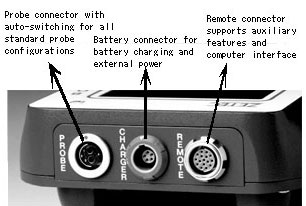

Flexible probe support.
The MIZ-21SR supports a wide variety of probes for eddy current testing, bond testing (resonance or sondicator) and conductivity testing. One instrument offers the flexibility to test with low-cost, singlecoil probes or highly specialized, multicoil probes.
Lightweight, rugged package.
The MIZ-21SR is designed for both outdoor and indoor use. Its durable aluminum case, with additional EMI shielding, is sealed to protect the instrument from dust and moisture.The drip-proof enclosure with sealed front panel keeps out the weather.
The MIZ-21SR’s compact, ergonomic package is easy to hold and operate with either hand. It also weighs less than four pounds (< 2 kg) to reduce fatigue.
The long-life NiMH batteries power the MIZ-21SR over 12 hours (without accessories) or more than nine hours with backlight on.That’s twice the energy performance of NiCDs without the drawbacks. The batteries will quick charge in less than two hours.You can recharge over and over -even partially -without memory loss.

Optional printer for screen captures and reporting test results.

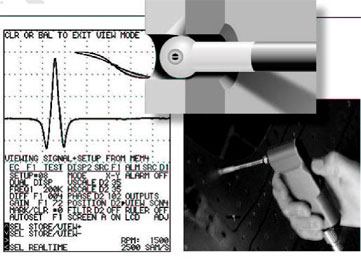

For the fastest inspections of boltholes with the best signalto-noise ratio, team up the MIZ-21SR high-speed, high-resolution electronics with Zetec’s latest high-speed scanner. This small, lightweight scanner is comfortable to hold while offering high probe rotation speed and torque.

Certified for safety, quality, and environmental protection.
The MIZ-21SR, MIZ-21B, and S-21R all carry a number of important certifications that attest to their high quality and safety. The MIL-STD-810 rating ensures that you can safely test in explosive environments, such as fuel tanks. Its CE Mark, the official mark required by the European Community for all electric and electronic equipment, is proof that this product fulfills all essential safety and environmental requirements defined by the European Directives.

The highest quality display in handhelds.
The 240x320 pixel LCD offers the best visibility in all environments.The wide viewing angle (60 degrees) makes the display easy to read in confined or awkward spaces.
Operate the instrument in total darkness or the brightest sunlight.The backlight offers excellent visibility with full contrast no matter how bright or dim the lighting. With its extended operating temperature range, the display remains clearly visible at temperatures below freezing.
The right- and left-handed user interface.
For comfortable, one-handed operation the sealed membrane keypad features symmetrical, dual controls with tactile feedback. This gives you the freedom to scan with a probe or operate the instrument with either hand depending on conditions.The simple menu is laid out in a single layer keeping all functions and test parameters easily accessible.
PC interface expands tester capabilities.
Store or recall test configurations and send screen captures to a PC using the MIZ-21 serial interface cable and software. It’s easy to update instrument software, too.
